LED COB LIGHT

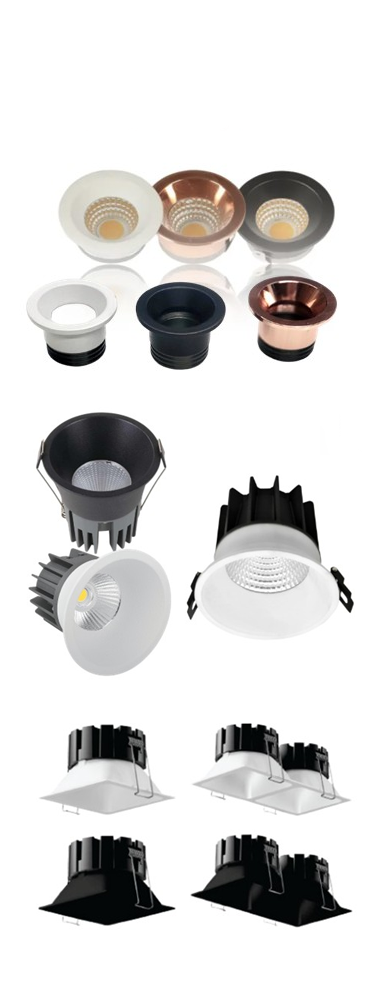

FLAME PRO COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-001	3W	BLK/WH/ST/RG	-	24°	38*28mm	28 mm
TLCOB-001	7W	BLACK/WHITE	-	24°	63*61mm	55 mm
TLCOB-001	12W	BLACK/WHITE	-	36°	82*79mm	75 mm
TLCOB-001	18W	BLACK/WHITE	-	36°	90*88mm	85 mm
TLCOB-001	30W	BLACK/WHITE	-	36°	140*100mm	135 mm
TLCOB-001	50W	BLACK/WHITE	-	60°	140*110mm	135 mm
TLCOB-001	12W SQ	BLACK/WHITE	-	36°	858562mm	75*75 mm
TLCOB-001	2*12W SQ	BLACK/WHITE	-	36°	1638562mm	155*75 mm

CRISTA COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-002	7W	BLACK/WHITE	ROSE GOLD/SATIN BLACK/SHINEY	24°	70X55 MM	30MM
TLCOB-002	12W	BLACK/WHITE	ROSE GOLD/SATIN BLACK/SHINEY	36°	88X60 MM	28MM
TLCOB-002	18W	BLACK/WHITE	ROSE GOLD/SATIN BLACK/SHINEY	36°	98X65 MM	28MM

GUCCI COB (ALLUMINIUM RING)

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-003	7W	BLACK/WHITE	ROSE GOLD - SETIN BLK	24°	70X55 MM	60MM
TLCOB-003	12W	BLACK/WHITE	ROSE GOLD - SETIN BLK	36°	88X60 MM	75MM
TLCOB-003	18W	BLACK/WHITE	ROSE GOLD - SETIN BLK	36°	98X65 MM	88MM

MARVEL COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-004	12W	- METALLIC ROSE GOLD - METALLIC SETIN BLK	-	36°	85X70 MM	75MM

SPARKLE COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-005	12W	METALLIC ROSE GOLD / METALLIC SETIN BLK	-	36°	80X45 MM	75MM

ALPINO COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-006	7W	WH/BK/GM/MB	-	38°	H-76MM, OUTER-40MM	35MM
TLCOB-006	12W	WH/BK/GM/MB	-	38°	H-76MM, OUTER-55MM	50MM
TLCOB-006	18W	WH/BK/GM/MB	-	38°	H-85MM, OUTER-70MM	65MM

LUNA COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-007	09W	WH/BK	-	38°	H-56MM, OUTER-60MM	55MM
TLCOB-007	12W	WH/BK	-	38°	H-63MM, OUTER-80MM	75MM

GLORIA COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-008	09W	WH/BK	-	38°	H-56MM, OUTER-60MM	55MM
TLCOB-008	12W	WH/BK	-	38°	H-63MM, OUTER-80MM	75MM

SWISS DETACHABLE

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-009	7W	WH/BK	GM/BK	38°	H-83MM, OUTER-40MM	35MM
TLCOB-009	12W	WH/BK	GM/BK	38°	H-90MM, OUTER-60MM	55MM

PENCIL COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-010	12W	WH/BK	-	38°	60X80 MM	50MM

FLORA COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-011	12W	WH/BK	-	38°	H-63MM, OUTER-80MM	75MM
TLCOB-011	15W	WH/BK	-	38°	H-60MM.D-82M	75MM

PLUTO COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-012	10W	WH/BK/BRONZE/GREY/BRUCH COPPER	-	36°	D-70MM,H-43MM	65MM
TLCOB-012	15W	WH/BK/BRONZE/GREY/BRUCH COPPER	-	36°	D-80MM,H-46MM	75MM
TLCOB-012	20W	WH/BK/BRONZE/GREY/BRUCH COPPER	-	36°	D-90MM,H-54MM	85MM
TLCOB-012	7W	WH/BK/BRONZE/GREY/BRUCH COPPER	-	36°	63X43 MM	55MM
TLCOB-012	12W	WH/BK/BRONZE/GREY/BRUCH COPPER	-	36°	80X44 MM	75MM
TLCOB-012	18W	WH/BK/BRONZE/GREY/BRUCH COPPER	-	36°	94X51 MM	85MM

FLARE COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-013	08W	WH/BK	-	38°	D-63MM,H-78MM	55MM
TLCOB-013	12W	WH/BK	-	38°	D-73MM,H-80MM	67MM
TLCOB-013	15W	WH/BK	-	38°	D-83MM,H-81MM	75MM

MATRIX COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-014	12W	WH/BK/GREY/BRONZE/ BRUSH COPPER	-	36°	D-65MM,H-52MM	60MM
TLCOB-014	15W	WH/BK/GREY/BRONZE/ BRUSH COPPER	-	36°	D-75MM, H-60MM	70MM
TLCOB-014	20W	WH/BK/GREY/BRONZE/ BRUSH COPPER	-	36°	D-90MM,H-66MM	85MM

CAMERY COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-015	07W	WH/BK	-	36°	D68MM H36MM	60MM
TLCOB-015	12W	WH/BK	-	36°	D83MM H42MM	75MM
TLCOB-015	18W	WH/BK	-	36°	D93MM H45MM	85MM

IP54 RAIN PROOF COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-016	12W	WH/BK	-	36°	85X70 MM	75MM
TLCOB-016	18W	WH/BK	-	36°	105X75 MM	95MM
TLCOB-016	30W	WH/BK	-	36°	130X75 MM	115MM
TLCOB-016	50W	WH/BK	-	36°	150X80 MM	135MM

OCTRA DETACHABLE COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-017	7W	WH/BK	-	36°	62 MM	55MM
TLCOB-017	12W	WH/BK	-	36°	90 MM	75MM
TLCOB-017	18W	WH/BK	-	36°	110 MM	95MM

SPECTRUM PRO COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-018	7W	WH/BK	WH/BK/GM/RG/SILVER	36°	D-65MM,H-78MM	55MM
TLCOB-018	12W	WH/BK	WH/BK/GM/RG/SILVER	36°	D-82MM,H-96MM	75MM
TLCOB-018	18W	WH/BK	WH/BK/GM/RG/SILVER	36°	D-105MM,H-121MM	95MM
TLCOB-018	12W	WH/BK	WH/BK/GM/RG/SILVER	36°	D-108MM,H-96MM	75MM

SPECTRO PRIME COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-019	15W	WH/BK	-	36°	D-83MM,H-72MM	75MM

TRIMLESS DETACHABLE COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-020	7W	WH/BK	-	36°	H-76MM	40M
TLCOB-020	12W	WH/BK	-	36°	96X88 MM	75MM

ZOOM ROUND COB LIGHT

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-021	2X12W	WH/BK	-	36°	90X170 MM	75X150MM
TLCOB-021	12W	WH/BK	-	36°	90 MM	75MM
TLCOB-021	20W	WH/BK	-	36°	110 MM	95MM
TLCOB-021	30W	WH/BK	-	36°	135 MM	115MM
TLCOB-021	50W	WH/BK	-	36°	165 MM	145MM

HERCULEAN COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-022	25W	WH/BK	-	38°	D-102MM,H-94MM	95MM
TLCOB-022	35W	WH/BK	-	38°	D-114.5MM,H-106MM	105MM
TLCOB-022	45W	WH/BK	-	38°	D-124.5MM,H-115MM	115MM

PRIME COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-023	7W	WH/BK	-	38°	H-71MM,D-52MM	45MM
TLCOB-023	10W	WH/BK	-	38°	H-80MM,D-62MMM	55MM
TLCOB-023	12W	WH/BK	-	38°	H-90MM, D-72MM	65MM
TLCOB-023	15W	WH/BK	-	38°	H-90MM,D-82MM	75MM

MOVABLE COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-024	3W	WH/BK	-	38°	63X35 MM	55MM
TLCOB-024	7W	WH/BK	-	38°	85X40 MM	80MM
TLCOB-024	12W	WH/BK	-	38°	85X40 MM	80MM
TLCOB-024	18W	WH/BK	-	38°	105X50 MM	100MM
TLCOB-024	24W	WH/BK	-	38°	135X80 MM	120MM
TLCOB-024	30W	WH/BK	-	38°	150X100 MM	132MM
TLCOB-024	30W BIG	WH/BK	-	38°	160X100 MM	145MM
TLCOB-024	50W	WH/BK	-	38°	150X100 MM	132MM
TLCOB-024	50W	WH/BK	-	38°	160X100 MM	145MM

BUTTERFLY COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-025	7W	WH/BK	GM	24°/36°/60°	H-78MM,D-62MM	55MM
TLCOB-025	15W	WH/BK	GM	24°/36°/60°	H-91MM,D-82MM	75MM
TLCOB-025	25W	WH/BK	GM	24°/36°/60°	H-121MM,D-110MM	95MM

FALCON COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-026	7W	WH/BK	GM	24°/36°/60°	H-78MM,D-58MM	57MM
TLCOB-026	15W	WH/BK	GM	24°/36°/60°	H-91MM,D-77MM	77MM
TLCOB-026	25W	WH/BK	GM	24°/36°/60°	H-121MM,D-97MM	97MM

PLUTO PLUS COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-027	10W	WH/BK/BRONZE/GREY/BRUSH COPPER	-	36°	D-70MM,H-61MM	65MM
TLCOB-027	15W	WH/BK/BRONZE/GREY/BRUSH COPPER	-	36°	D-80MM,H-70MM	75MM
TLCOB-027	20W	WH/BK/BRONZE/GREY/BRUSH COPPER	-	36°	D-90MM,H-80MM	85MM

PLUTO PRO COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-028	10W	WH/BK/BRONZE/GREY/BRUSH COPPER	-	36°	D-70MM,H-61MM	65MM
TLCOB-028	15W	WH/BK/BRONZE/GREY/BRUSH COPPER	-	36°	D-80MM,H-70MM	75MM
TLCOB-028	20W	WH/BK/BRONZE/GREY/BRUSH COPPER	-	36°	D-90MM,H-80MM	85MM

VOXY COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-030	09W	WH/BK	-	36°	H-75MM, OUTER-42MM	35MM
TLCOB-030	15W	WH/BK	-	36°	H-78MM, OUTER-52MM	45MM

SLIMO ECO COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-031	5W	WH/BK	-	36°	H-80MM,D-35MM	30MM
TLCOB-031	10W	WH/BK	-	36°	H-96MM,D-45MM	40MM

SLIMO PRO COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-032	15W	BK/WH/GUNMETAL	-	36°	H-100MM, D-51	45MM
TLCOB-032	20W	BK/WH/GUNMETAL	-	36°	H-100MM,D-61MM	55MM

FLAVIA COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-33	7W	WH/BK	-	38°	H-65MM, OUTER-43MM	35MM
TLCOB-33	12W	WH/BK	-	38°	H-94MM, OUTER-63MM	55MM
TLCOB-33	18W	WH/BK	-	38°	H-103MM, OUTER-83MM	75MM

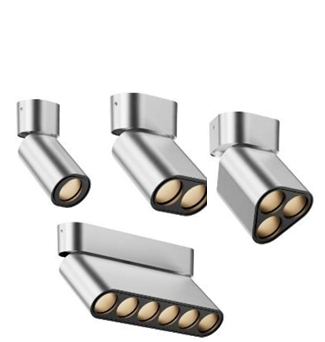

GLANZA COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-34	10W	METAL GREY	-	36°	L-47MM,W-37MM H-117MM	-
TLCOB-34	15W	METAL GREY	-	36°	L-67MM,W-37MM H-117MM	-
TLCOB-34	18W	METAL GREY	-	36°	L-67MM,W-63MM H-117MM	-
TLCOB-34	35W	METAL GREY	-	36°	L-187MM,W-37MM H-117MM	-

ATOM ROUND

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-35	7W	WH/BK	-	36°	H-46MM, OUTER-65MM	55MM
TLCOB-35	15W	WH/BK	-	36°	H-52MM, OUTER-85MM	75MM

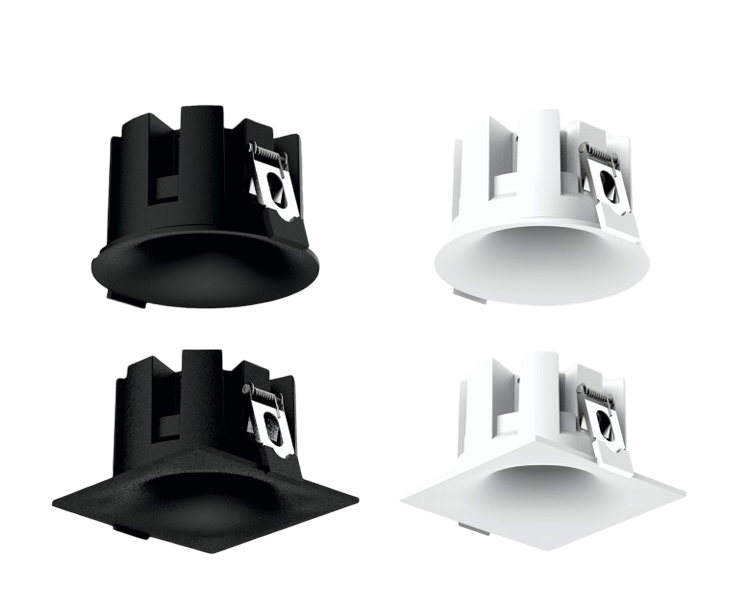

ATOM SQUARE COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-35	7W	WH/BK	-	36°	H-46MM, OUTER-65*65MM	55MM
TLCOB-35	15W	WH/BK	-	36°	H-52MM, OUTER-85*85MM	75MM

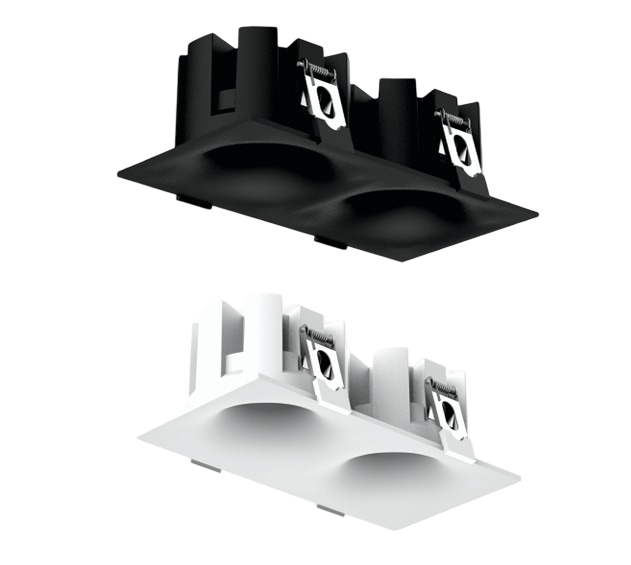

ATOM DUAL COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-35	2X7W	WH/BK	-	38°	H-46MM,O-122*65MM	113*55MM
TLCOB-35	2X15W	WH/BK	-	38°	H-52MM,O-162*85MM	153*75MM

ATOM PRO COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-36	10W	WH/BK	-	36°	H-46MM,D-65*65MM	55MM
TLCOB-36	15W	WH/BK	-	36°	H-52MM,D-85*85MM	75MM
TLCOB-36	2X10W	WH/BK	-	36°	H-46MM,D-122*65MM	113*55MM
TLCOB-36	2X15W	WH/BK	-	36°	H-50MM, D-162*85MM	153*75MM

LOTUS COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-37	8W	WH/BK	-	36°	H-71MM, OUTER-62MM	55MM
TLCOB-37	15W	WH/BK	-	36°	H-80MM, OUTER-72MM	65MM
TLCOB-37	18W	WH/BK	-	36°	H-83MM, OUTER-83MM	75MM

LOTUS SLEEK COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-38	8W	WH/BK	-	36°	H-82MM, OUTER-65MM	55MM
TLCOB-38	15W	WH/BK	-	36°	H-83MM, OUTER-75MM	65MM
TLCOB-38	18W	WH/BK	-	36°	H-86MM, OUTER-85MM	75MM

IGNIS COB

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-39	7W	WH/BK	-	36°	68*66MM	60MM
TLCOB-39	7W	ST/RG	-	36°	68*66MM	60MM
TLCOB-39	12W	WH/BK	-	36°	83*75MM	75MM
TLCOB-39	12W	ST/RG	-	36°	83*75MM	75MM
