LINEA LIGHT

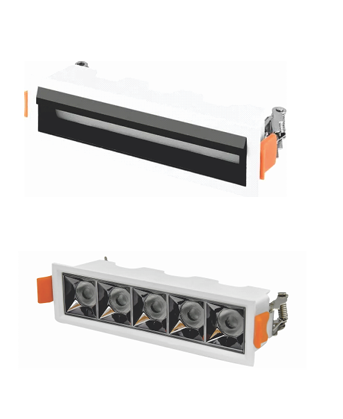

TILTABLE LINEA

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-301	12W	BK/WH	-	36°	130X55 MM	135X45 MM

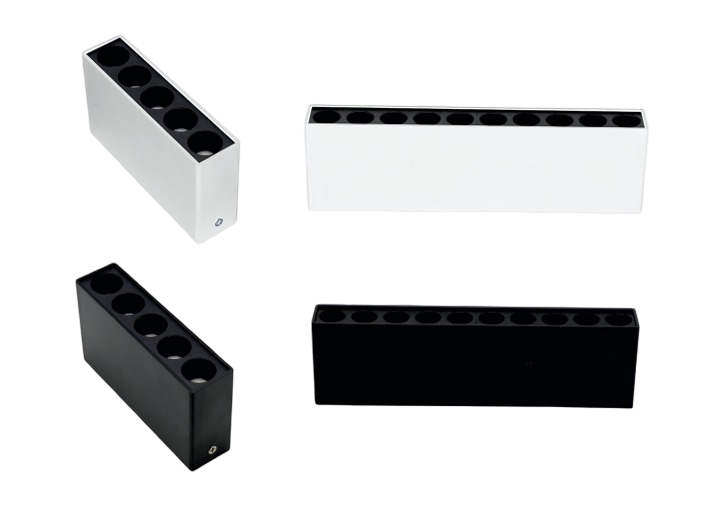

AQSA PRO SF LINEA

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-302	10W	BK/WH	-	36°	L-138MM,W-78MM H35MM	-
TLCOB-302	20W	BK/WH	-	36°	L-270MM,W-78MM H35MM	-

WALL WASHERS (LINEA 30)

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-303	8W	BK/WH	RG REFLECTOR = 5 RS EXTRAA PER HEAD	36°	105X45X42 MM	95X32 MM
TLCOB-303	12W	BK/WH	RG REFLECTOR = 5 RS EXTRAA PER HEAD	36°	146X45X42 MM	137X35 MM

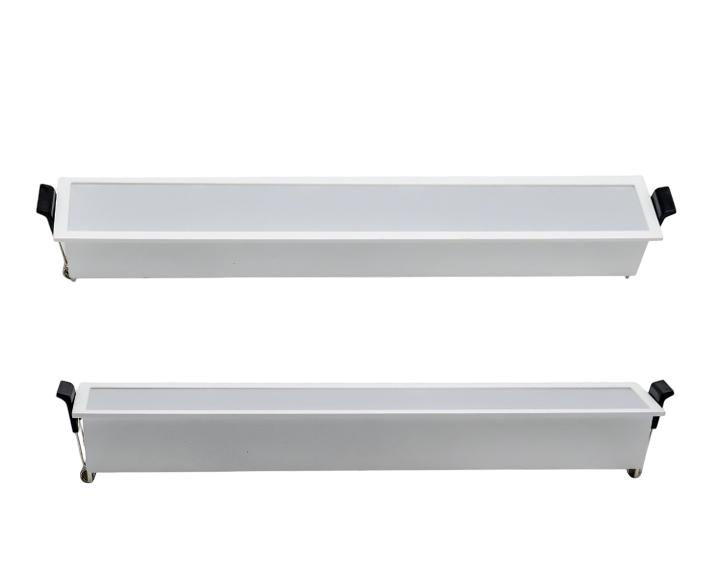

DIFFUSE LINEA

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-304	20W	BK/WH	-	36°	L-276MM,W-41MM H32MM	35x272mm
TLCOB-304	30W	BK/WH	-	36°	L-409MM,W-41MM H32MM	35x405mm

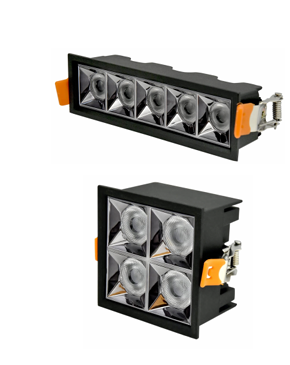

AQSA FUSION PRO REFLECTOR LINEA

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-306	3W	BK/WH	RG REFLECTOR = PER HEAD 4/-RS EXTRA	36°	45x4532 MM	35X35 MM
TLCOB-306	6W	BK/WH	RG REFLECTOR = PER HEAD 4/-RS EXTRA	36°	68x4532 MM	58X35 MM
TLCOB-306	8W	BK/WH	RG REFLECTOR = PER HEAD 4/-RS EXTRA	36°	95x45x32 MM	85X35 MM
TLCOB-306	12W	BK/WH	RG REFLECTOR = PER HEAD 4/-RS EXTRA	36°	146X45X42 MM	137X35 MM
TLCOB-306	20W	BK/WH	RG REFLECTOR = PER HEAD 4/-RS EXTRA	36°	282X45X32 MM	237X37 MM

AQSA LINEA (LINEA 20)

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-307	6W	BK/WH	RG REFLECTOR = 5 RS EXTRAA PER HEAD	36°	173X33X40 MM	62X25 MM
TLCOB-307	8W	BK/WH	RG REFLECTOR = 5 RS EXTRAA PER HEAD	36°	55X35 MM	45X45 MM
TLCOB-307	12W	BK/WH	RG REFLECTOR = 5 RS EXTRAA PER HEAD	36°	134X33X40 MM	125X25 MM
TLCOB-307	18W	BK/WH	RG REFLECTOR = 5 RS EXTRAA PER HEAD	36°	73X73X40 MM	65X65 MM

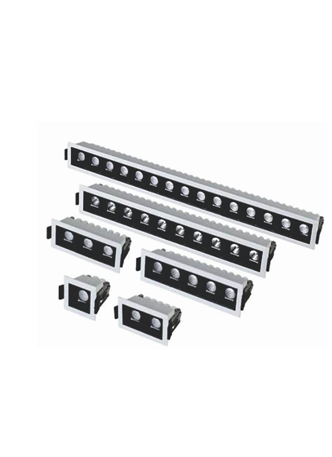

MAGIC LINEA (LINEA 50 )

MODEL	WATT	BODY COLOR	REFLECTOR	BEAM ANGLE	DIMENSION	CUT OUT
TLCOB-308	4W	BK/WH	RG REFLECTOR = 5 RS EXTRAA PER HEAD	36°	51X50X55 MM	41X41 MM
TLCOB-308	12W	BK/WH	RG REFLECTOR = 5 RS EXTRAA PER HEAD	36°	128X50X55 MM	118X42 MM
TLCOB-308	16W	BK/WH	RG REFLECTOR = 5 RS EXTRAA PER HEAD	36°	90X90X55 MM	80X80 MM
TLCOB-308	20W	BK/WH	RG REFLECTOR = 5 RS EXTRAA PER HEAD	36°	200X50X55 MM	192X42 MM
TLCOB-308	36W	BK/WH	RG REFLECTOR = 5 RS EXTRAA PER HEAD	36°	128X128X55 MM	118X188 MM
